FEATURES

• Active balanced on all inputs and outputs
• Also accepts unbalanced signals from iPods, CD players, etc
• Clean, uncolored, and detailed audio with uber flat response at all volumes

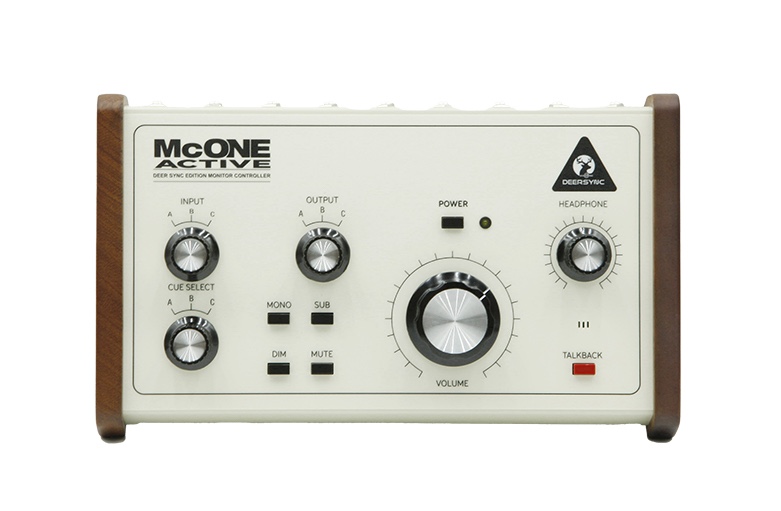

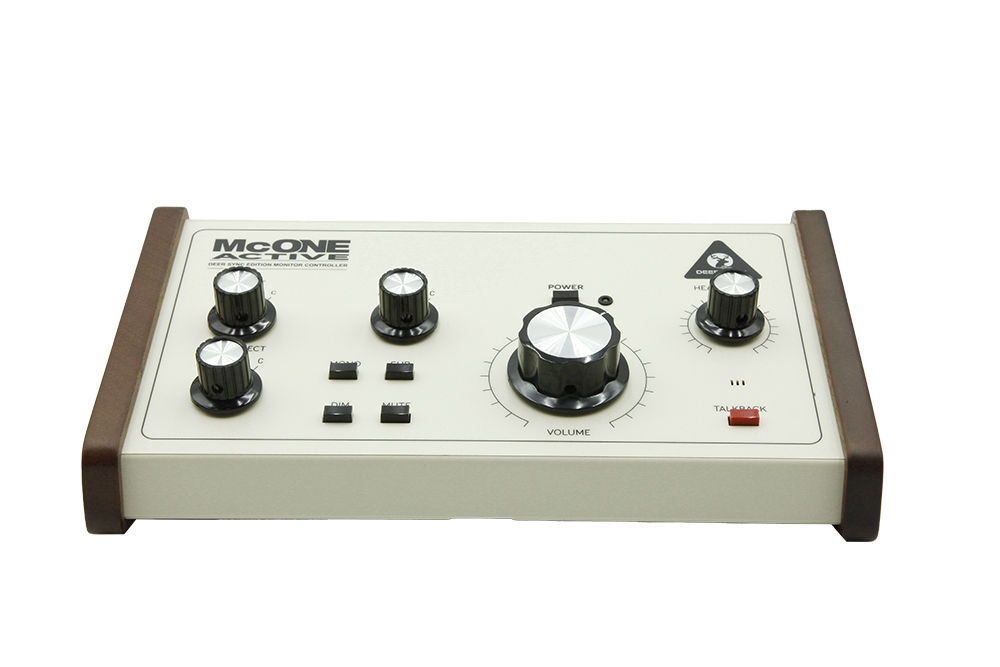

• Tabletop, ergonomic design is easy to reach for
• Cream color with black text is easy to read in dim lighting

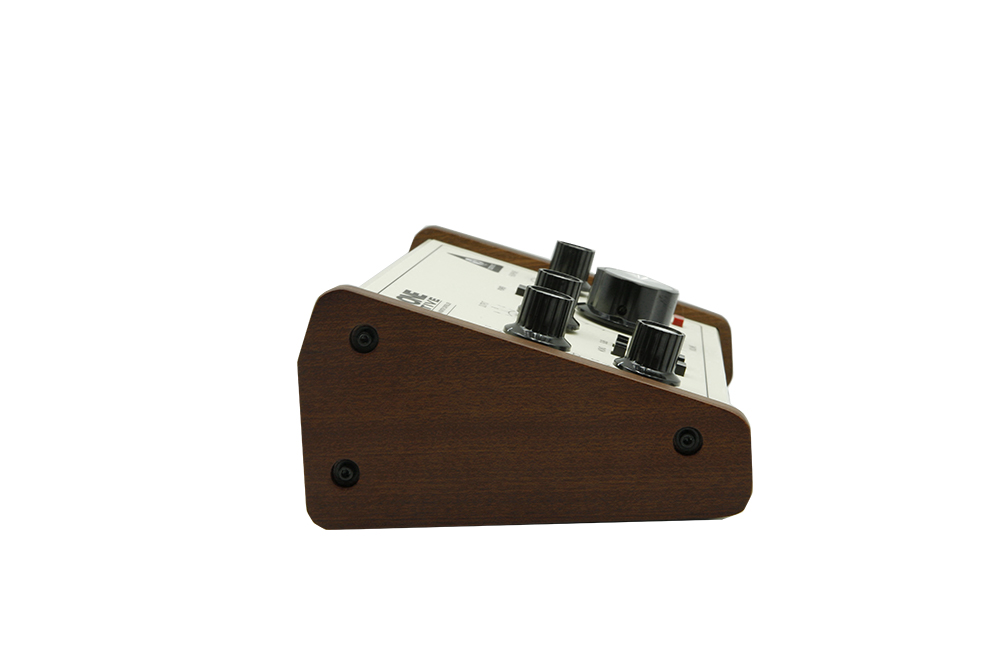

• Wooden sides bring an old school vintage vibe to your DAW studio

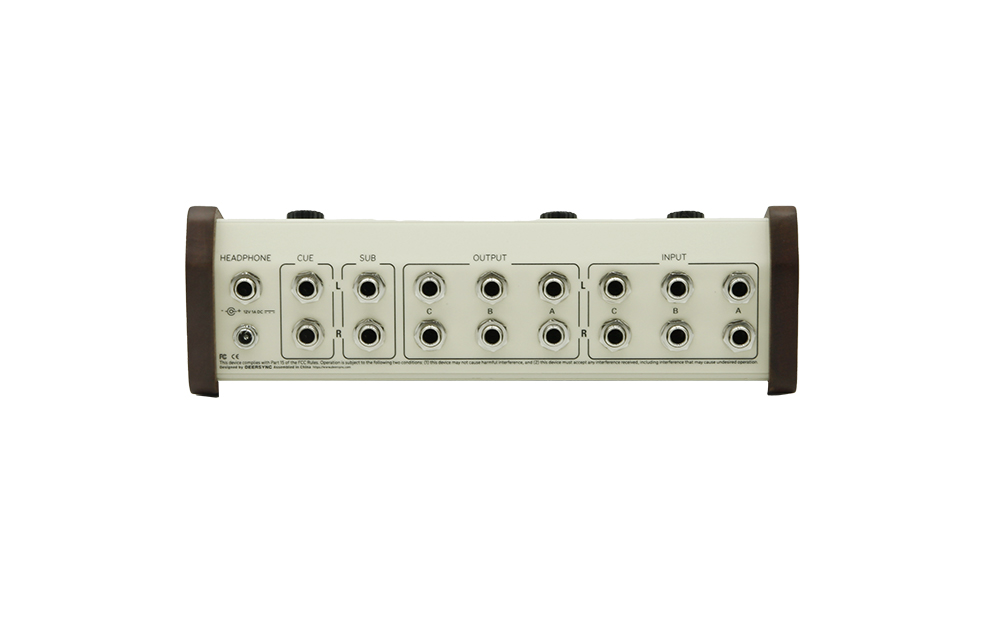

• 3 Inputs, TRS 1/4” Balanced, Selectable for monitoring or CUE feed
• 3 Speaker Outputs, TRS 1/4” Balanced for multiple stereo pairs
• 1 Stereo Subwoofer Output, TRS 1/4” Balanced with on/off switch
• 1 Stereo CUE output, feed your artist headphone system with three inputs + talkback
• 1 Headphone output for control room / engineer
• Talkback microphone with talkback gain trim access on bottom of unit
• Volume pot, high quality ALPS
• Headphone amp volume control
• MONO summing for checking mixes, affects 3 speaker outs and subwoofer
• DIM function, -17dB value (engages during talkback)
• MUTE function
• Power switch with soft amber glow LED indicator
• Universal power supply, auto sensing (standard IEC 3 prong)

SPECIFICATIONS

• INPU: Maximum Input Level +26dBU
• OUTPUT: Maximum Output Level before clipping +29dBU
• SIGNAL TO NOISE RATIO: @ 0dBu unity gain 120dB
• CROSSTALK: L/R @ 1kHz -105dBu
• THD & NOISE: unity gain +24dBu input .005%
• FREQUENCY RESPONSE: 20Hz – 20kHz +/- 0.3dB
• DIMENSIONS: 10.25”W x 6”D x 3.25”H
• WEIGHT: 3.55 LBS (1.6 KG)
• POWER REQUIREMENTS: 12-18V @ 1000
